Product details:

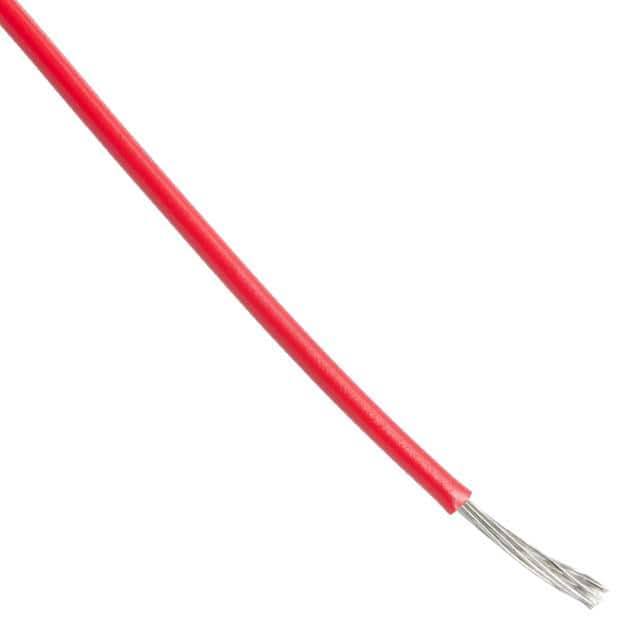

Product Overview The 3050 RD001 is a 1000ft 24AWG 300V red Hook-up Wire with stranded tinned copper conductor and PVC insulation. This wire has the ability to withstand wear and abrasion, electrical properties and resistance to oil, solvents and chemicals. It provides excellent uniformity for easy handling, stripping and termination. 3.5lbs Maximum pull tension 0.41mm Insulation thickness General-purpose insulation Excellent flame resistance REACH regulation (EC 1907/2006) Applications Automation & Process Control, Microwave, Defence, Military & Aerospace, Industrial Jacket Material: PVC Jacket Color: Red Wire Gauge: 24AWG Conductor Area CSA: 0.229mm Reel Length (Imperial): 1000ft Reel Length (Metric): 305m Operating Temperature Max: 105 C No. of Max Strands x Strand Size: 7 x 32AWG Voltage Rating: 300V Conductor Material: Tinned Copper External Diameter: 1.422mm Approval Specification: CSA AWM I A/B FT1, CSA TR-64 FT1, UL 1007, UL 1581, UL 1569, UL VW-1
